Five axis CNC tool grinder

: TW-628 five axis CNC tool grinder

Product features：The 5-axis 5-linkage CNC tool grinding machine produced by our company is designed according to the concept of 5-axis CNC tool grinding machine in Germany and the experience of the designers in actual operation, and communicated at the tool production site. It is practical, economical, operational, maintenance, stable and efficient. The machine tool adopts a right door to facilitate unrestricted operation and maintenance of the machine tool. The fully enclosed protective cover conforms to production safety. In order to cope with the production of special tools and optimize the relative position relationship of the servo axis of the equipment, it can be manufactured according to the mechanism for processing various tools. Imported servo motor and screw guide are adopted for the whole shaft, with high precision and resolution, ensuring high production efficiency and variety of tools.

National Advisory Hotline：
138-2575-1784

Advisory

product details

Main configuration

1. X-axis horizontal linear CNC axis, Taiwan's new generation servo motor, THK precision ball screw, THK precision rolling guide rail.

2. Y axis, horizontal linear CNC axis, Taiwan's new generation servo motor, THK precision ball screw, THK precision rolling guide rail.

3. Z axis, vertical linear CNC axis, Taiwan's new generation servo motor, THK precision ball screw, THK precision ball guide.

4. Axis A: DD direct drive of workpiece rotation indexing axis.

5. Axis B: rotary indexing axis DD direct drive.

6. Precision universal probe (probe: workpiece detection).

7. Integral mineral casting marble bed and column.

8. The mobile hand pulse with magnet is used for convenient operation.

9. Special high-speed permanent magnetic spindle, double grinding head design HSK grinding wheel flange can be disassembled to the grinding wheel dresser as a whole to repair the grinding wheel.

10. The spindle motor is equipped with a special driver for permanent magnet motor.

11. Tubular sealing oil LED lamp is installed in the machine.

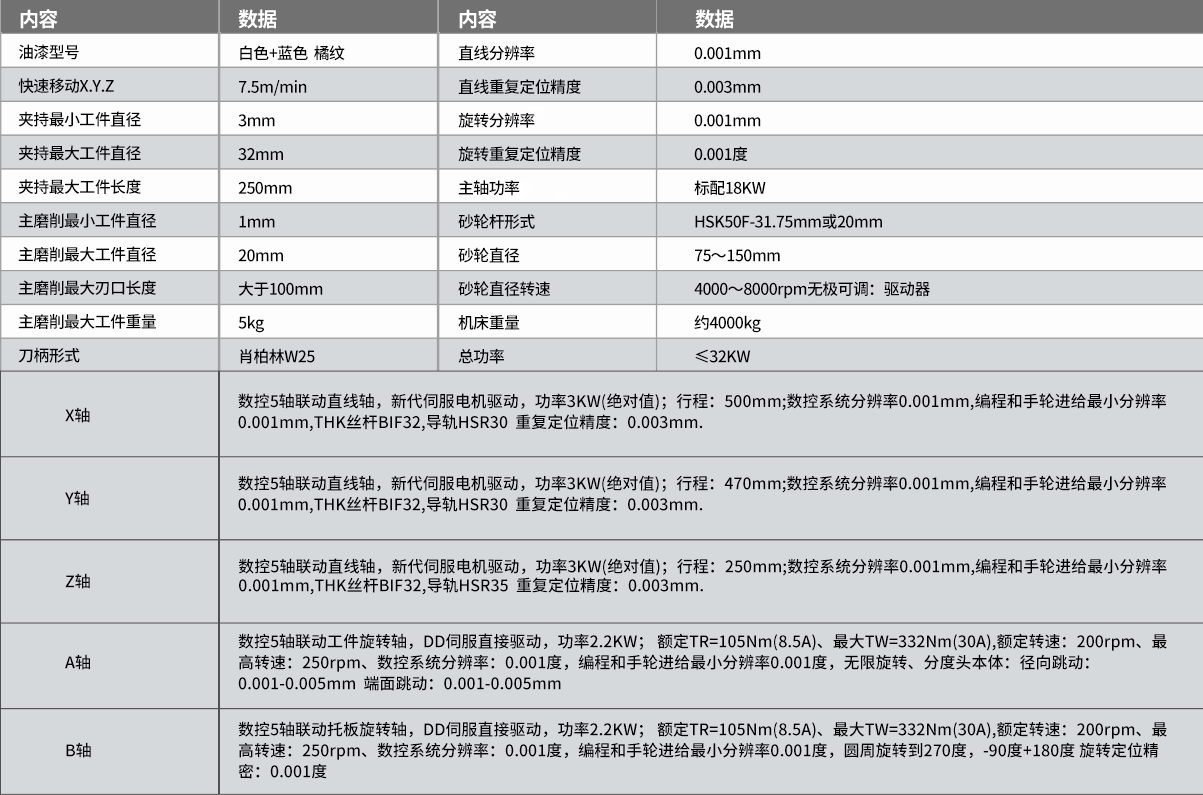

technical parameter
